Specifications:

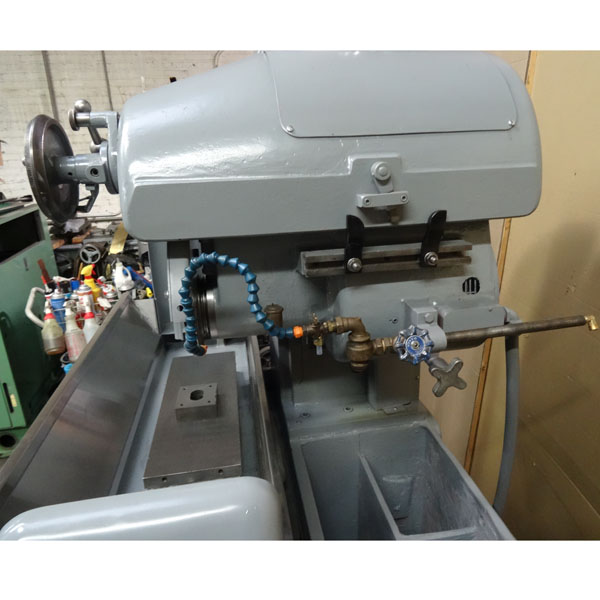

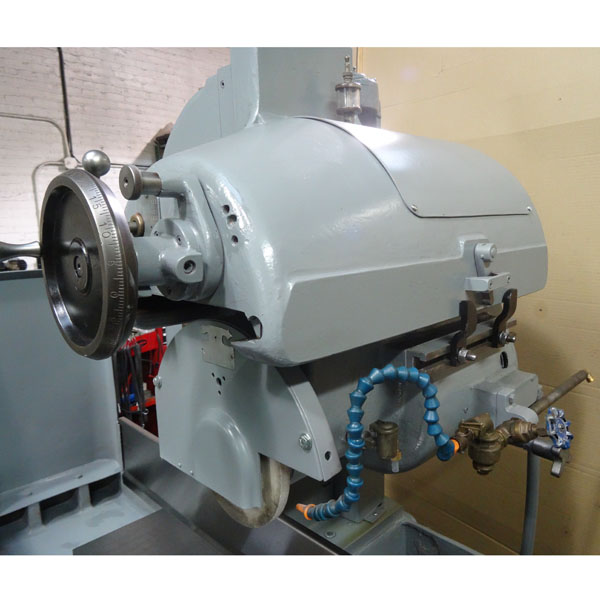

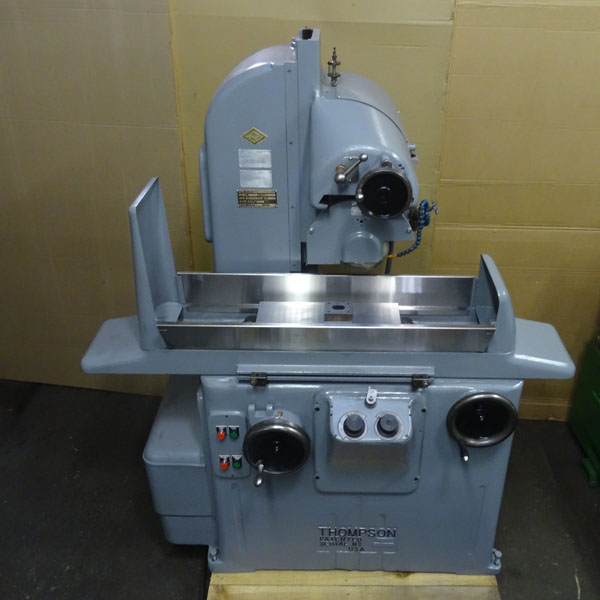

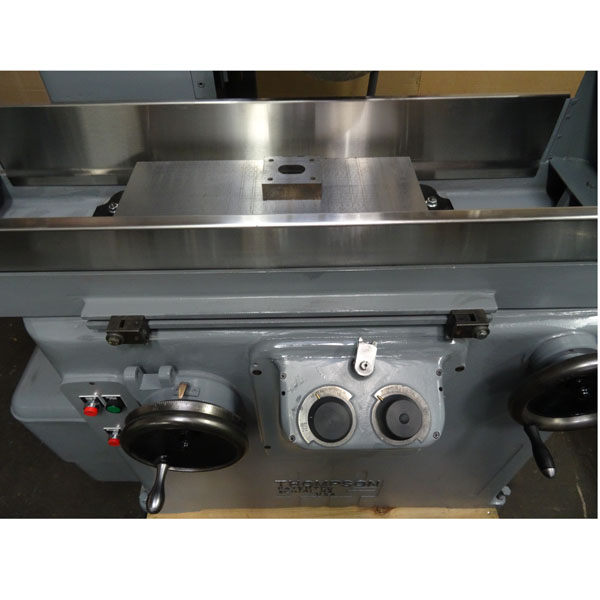

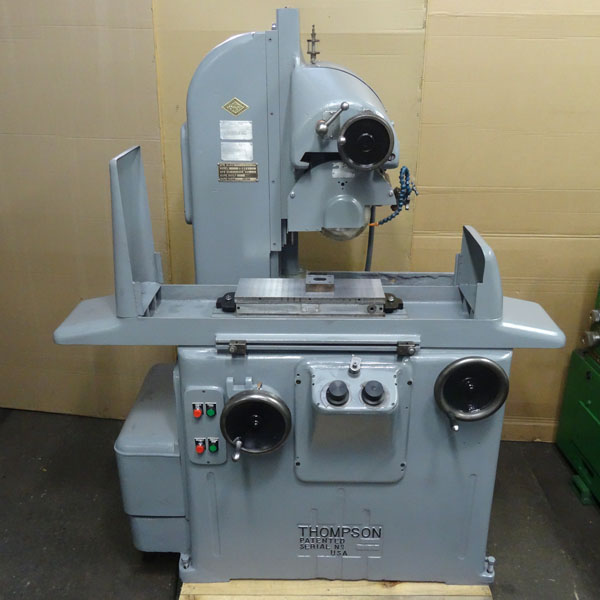

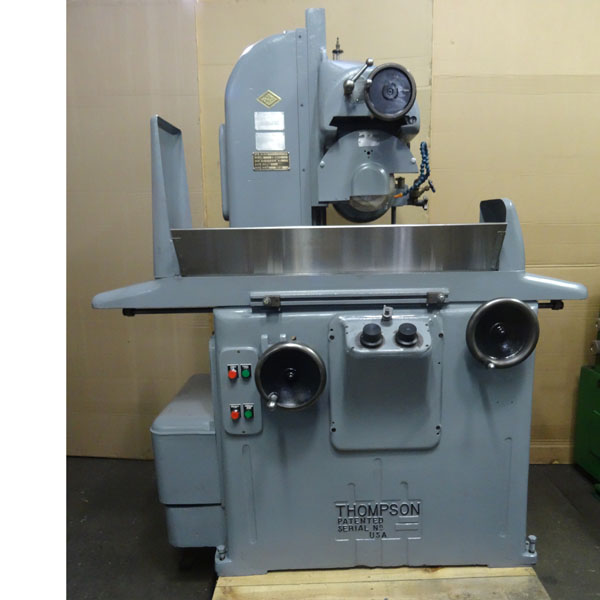

Thompson Surface Grinder
Automatic Hydraulic Table and Cross Feed
Manual Downfeed
Distance From Chuck to Center of Spindle: 13"
Manual Magnetic Choke 6" x 18"
Wheel Diameter: 12" x Inner Diameter: 1 1/4" x Thick 3/4"
Equipped With: Hydraulic Motor and Collant Pump
Spindle Motor: 1 1/2 H.P. Capable Dual Speed RPM: 1800 / 3600
Current Spindle Speed 1,800 RPM
460 VAC Only
6.8 / 6.0 Amps
Dimensions:
W: 63" x D: 40" x H: 80"
4,300 Lbs
Preliminary Specifications Subject to Verification
